Civil War Gunboats (N.Y.C. ferry conversions)
Section 4 - Drawing Plans
Updated November 19, 2017

     Mr. David Meagher has drawn a plan of the USS Commodore Perry (many thanks to Devin for the connection) in 1/40 scale.  I was planning on building an operating 1/35 scale modelbut other models have taken priority.  It looks like the Crystal River Boat Builders is planning on making a 1/24 scale model of the USS Fort Henry which will be about 6-feet long.
The following photos are of the USS Commodore Perry plan

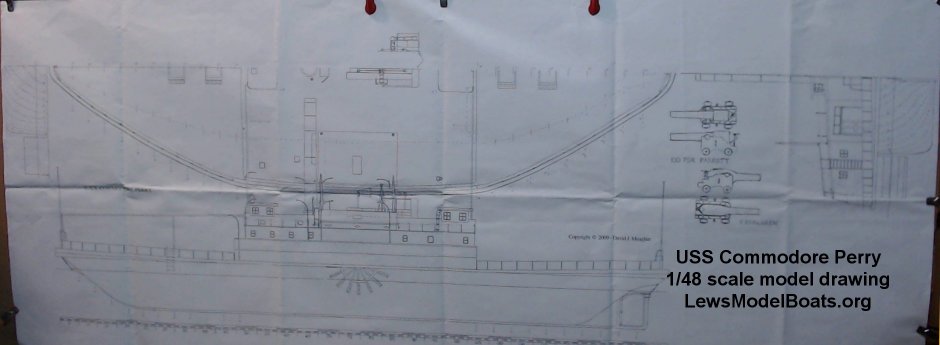

Full plan view
Closeup of left side of plan
Closeup of right side of plan
