Forward
The
Springer Tugs (original) are a "one class" model, meaning that there are design specifications so that the models are
consistent from one builder to another. This is mainly for competition events such as racing, water polo, contests,
etc. where winning is up to the skill of the operator (pilot) and not because of the deviations in the design of
the boat to make it faster than the competition. (See
http://ssmbc-fl.org/SSMBC-Springers.htm for more information.)
As you can see in the specifications (above link and other places) there are no restrictions on what is mounted
on the deck. There is no restriction on the scale of these tugs as that is usually determined by what is on the
deck and matches figures (normally based on a 6-foot male, average height). Some Springers are built to look like
a real truckable push boat, while others are built for fun such as a battleship.
The history of the Springer Tug dates back to the creator who
saw a truckable towboat and decided to build a model of it and somewhere along the line a class was created. A
truckable towboat (also known a
tug or push boat) is a boat that is small enough to be transported on land from
site to site (
photo, right). Because of highway limitations, depending on the size of this boat, permits might be needed
to transport any that are oversized loads. The boats are usually lifted off the trailer (lowboy) by a crane and
placed in the water. If the boat is small enough it might even be launched off the trailer. Most often the
boat's pilot house is lifted off the hull and transported
separately, especially if there are overhead clearance
problems such as wire or bridges.
My plans here are to build two Springers (hull names Springer #1 and
Springer #2) each with their own look. However, in keeping with the springer rules and
regulations, they will
meet those specifications as to the hull shape and size as well as the other rules.
Springer #1
Information

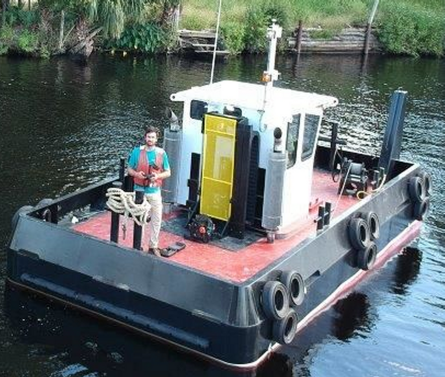

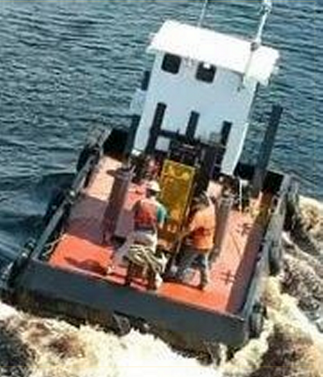

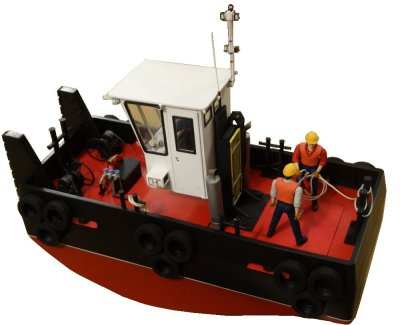

Springer # 1 is based on a real truckable towboat (see photos below).
The real boat has a lifting pilot house, which is somewhat
unique. Real boat specifications: Length is 25 feet;
width (beam) is 13'2", tow "knees" are 8 feet high.
In scaling the photos and comparing to the model hull
size a scale of 1/16.667 (rounded to 1/16 scale because of
figures availability) was established. Photos were
then measured to establish the dimensions of various
features. The Bruder figures (below) are about 1/17
scale.
Construction started on 10/1/2019. Most of
adhesive used is Gorilla Glue. Some modifications are
being made to the basic kit. Inside modifications are
mostly for strengthening increasing the deck to side
seam/joint from 1/4 inch to 3/8 inch. The main deck was replaced
by a full sheet of model plywood because the cutouts will be
small than the pre-cut Zippkits deck piece.
All work above the deck will be created mostly using 3D
design and printed parts. This includes the bulwarks,
superstructure, lift mechanism, H-Bits, and other deck
components.
Download the future SSMANA article on this boat:
PDF/Springer-1.pdf
Real Boat Photos

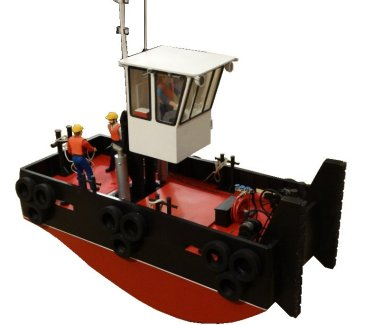

Springer #1 Model Photos

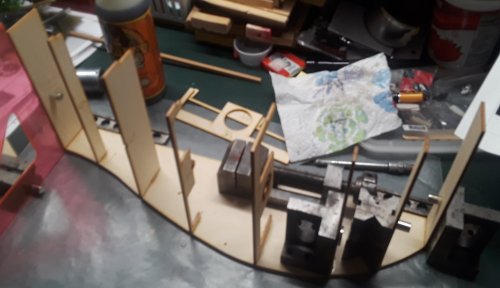

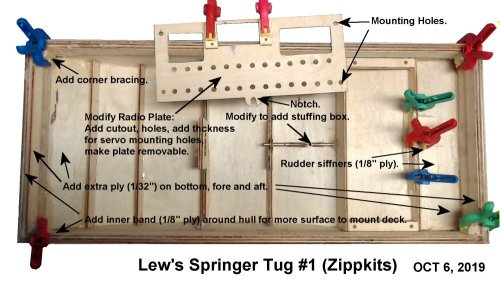

Below left, construction started on the Zippkits hull.
Below right, strengthening modifications made to the
hull before adding the deck.

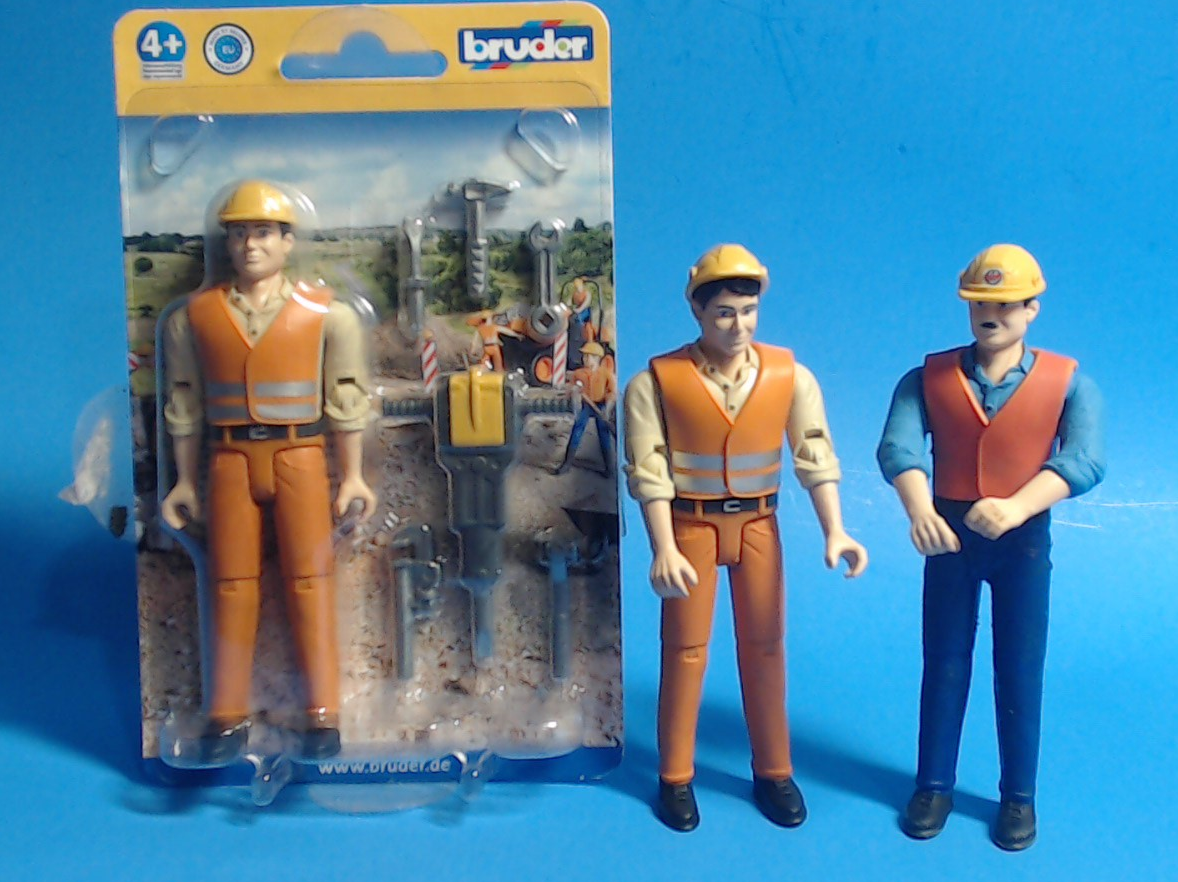

Below left,
Bruder figures for the crew (the one on the right
modified for detail).

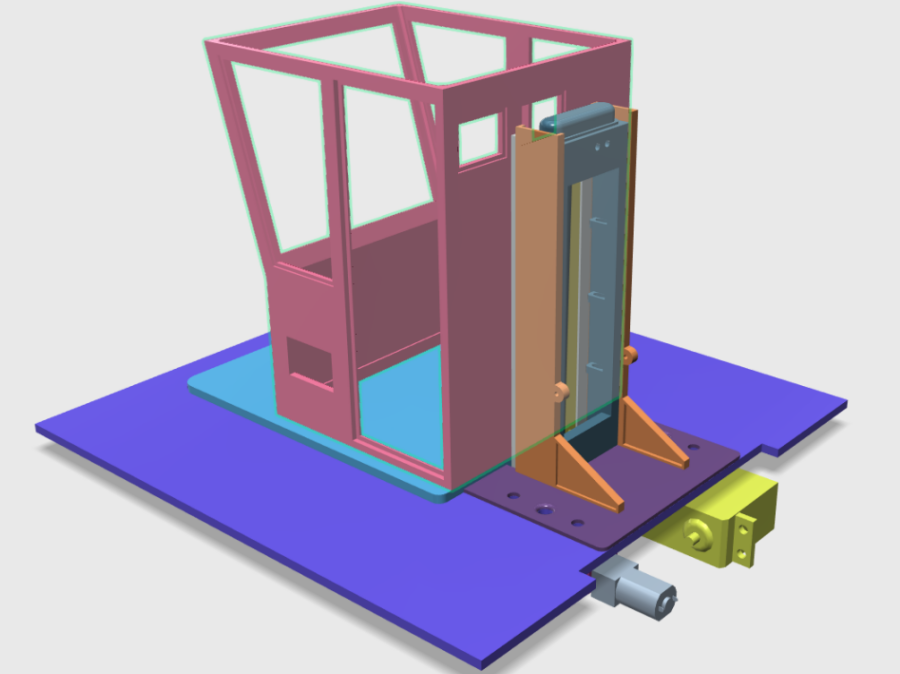

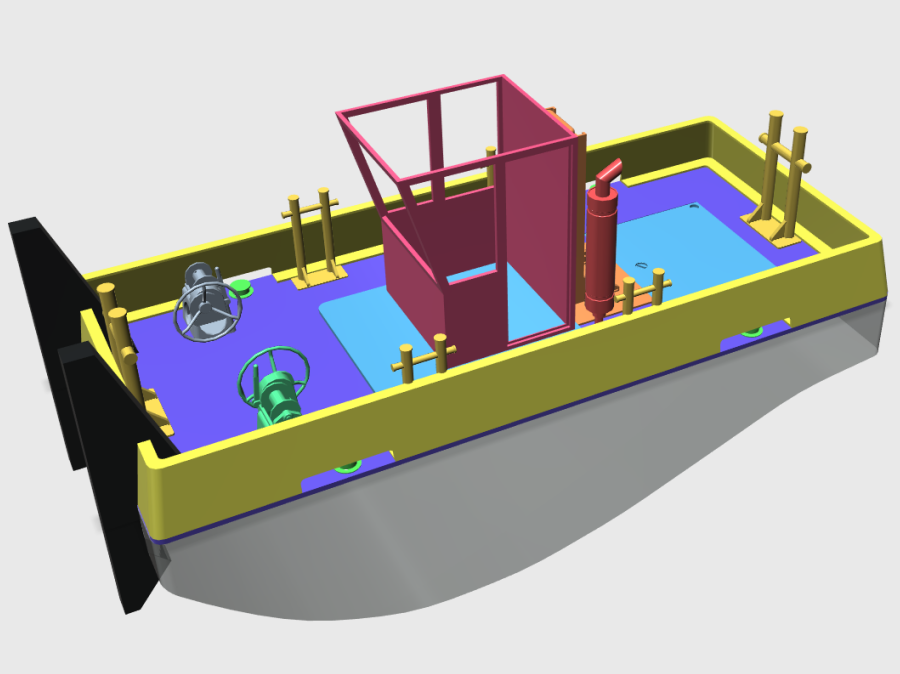

Below right, 3D Model for layout of the deck and cabin
parts.
Below left,

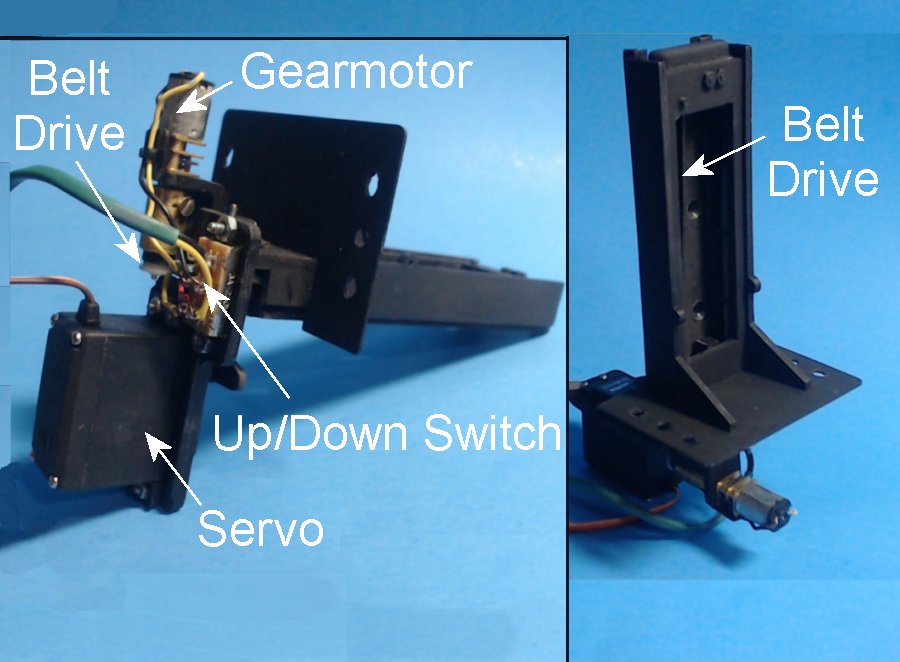

3D Model of the Cabin Lift (with cabin for mounting).
Below right, actual 3D printed Cabin Lift (works great).
Belt drive drive is from an old inkjet printer.

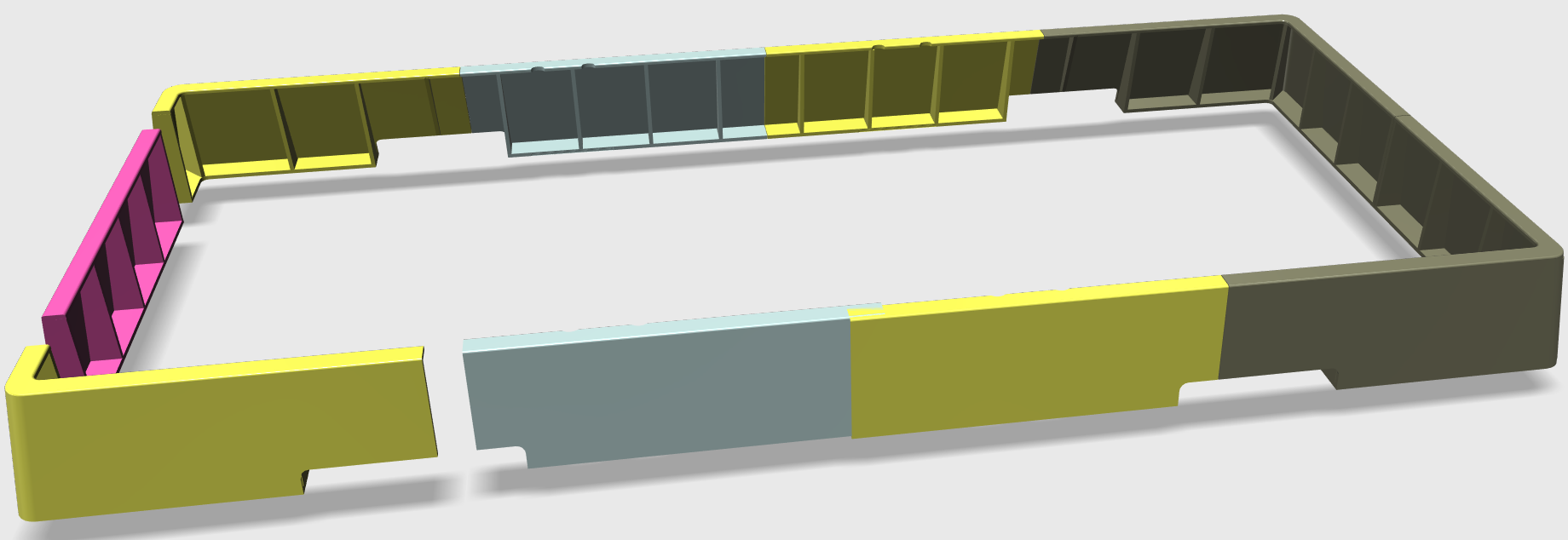

Below left,
3D Model of the Bullwarks. Due to the size limit
of the 3D printer, this had to be maed in several
sections cemeted together (shonw by different dolors).
Springer #2
Information
Springer # 2 is a fictitious small riverboat style model with a comical touch with having a "skeleton crew".
Springer #3
Information
Springer # 3 is based on a real push boat spotted on the larger lake near the SSMBC (model boat club)
pond in Lake Seminole Park. Photographs were taken of the boat and drawings
subsequently made from the photos, scaling the different features.
Springer #4
Information

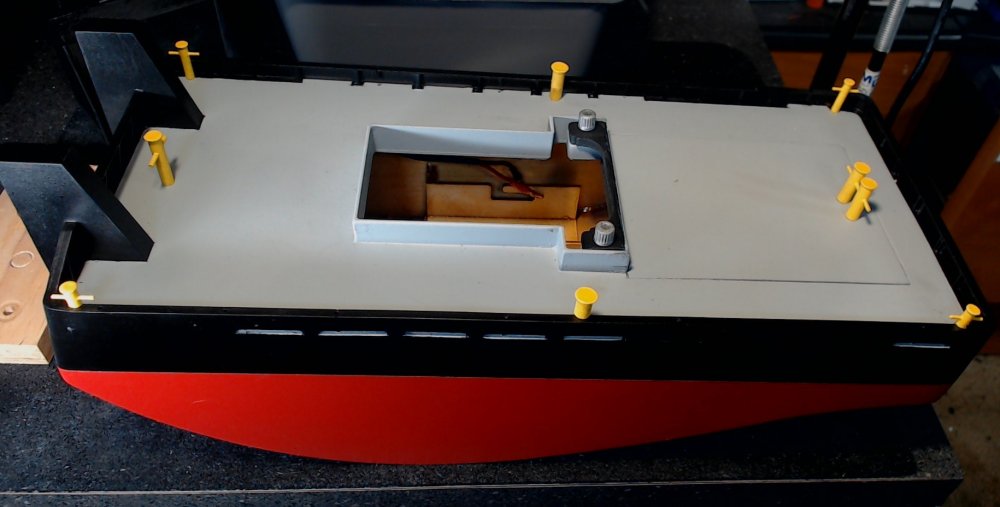

Springer # 4 is based on a real push boat built for the US Army Corps of Engineers.
Several photos were used and the real boat's architect. Drawings were made from all this information.
Currently under construction.
